■ ZION Fiber Optic Splice Trays

Product Overview

ZION Fiber Optic Splice Trays are engineered to organize and protect fiber splices inside optical splice closures, distribution frames, and FTTH access boxes. Each tray provides controlled routing paths, secure splice retention, and clear fiber management to reduce installation risk and improve long-term network reliability.

Applications

• Fiber Optic Splice Closures (Dome / Inline)

• ODF – Optical Distribution Frame

• Fiber Distribution Box (FDB) / Termination Box

• Wall Mount & Floor Standing Fiber Cabinets

• FTTH / FTTx Access Networks & Backbone Links

Design Features

• Splice Protection
  Dedicated holder slots for heat-shrink splice protectors (common lengths supported).

• Fiber Routing
  Smooth, rounded routing channels reduce micro-bending and accidental damage.

• Bend Radius
  Controlled routing geometry helps maintain recommended minimum bend radius.

• Maintenance Friendly
  Clear fiber pathways and labeling zones simplify inspection, re-entry and troubleshooting.

• Multi-Layer Expansion
  Stackable / hinged structures available for multi-tray closures and high fiber counts.

Splice Tray Construction

Note: Construction can be customized to match your closure, ODF, or cabinet internal structure.

Splice Capacity Options

Compatibility

• Compatible with dome & inline fiber optic splice closures

• Suitable for single-mode & multi-mode fibers

• Supports G.652D / G.657A1 / G.657A2 fibers

• Designed for standard heat-shrink splice protectors

• Ideal for FTTH access, distribution, and backbone networks

Installation & Maintenance

1. Route incoming fibers along the tray’s guiding channels and secure them at fixation points.

2. Place splices into the dedicated holder slots (match sleeve length to tray type).

3. Organize slack fiber loops while maintaining recommended bend radius.

4. Label fibers/trays for quick identification during future re-entry.

5. Re-enter and service without disturbing existing fibers (stacked/hinged options).

Why Choose ZION Splice Trays?

• Engineering-Grade Design
  Optimized routing geometry helps reduce fiber stress and improves reliability.

• Project-Friendly Supply
  Stable production capacity for large-scale deployments and fast delivery.

• OEM / ODM Customization
  Tray size, splice holder type, mounting method, and labeling support available.

• Solution Compatibility
  Works smoothly with closures, cabinets, and FTTH accessories for complete fiber management.

FAQ

What splice sleeve lengths are supported?
Common heat-shrink splice sleeves (e.g., 40 / 45 / 60 mm) can be supported. Please confirm your sleeve specification and required capacity, and we will match the tray holder design.

Can you customize a tray to fit our closure/ODF?
Yes. Share your internal layout dimensions, mounting method, target fiber count, and splice sleeve type — ZION can provide OEM/ODM matching.

How do I choose 12 vs 24 splices per tray?
Choose based on fiber count, closure space, and maintenance preference. For compact closures, 12-splice trays may improve handling; for high-density projects, 24-splice trays reduce tray quantity.

Quick Specs

Ordering Info

• Required capacity (splices/tray)

• Splice sleeve length (mm)

• Tray dimensions limit (L×W×H)

• Mounting style (clip/screw/hinge)

• Application (closure/ODF/FDB)

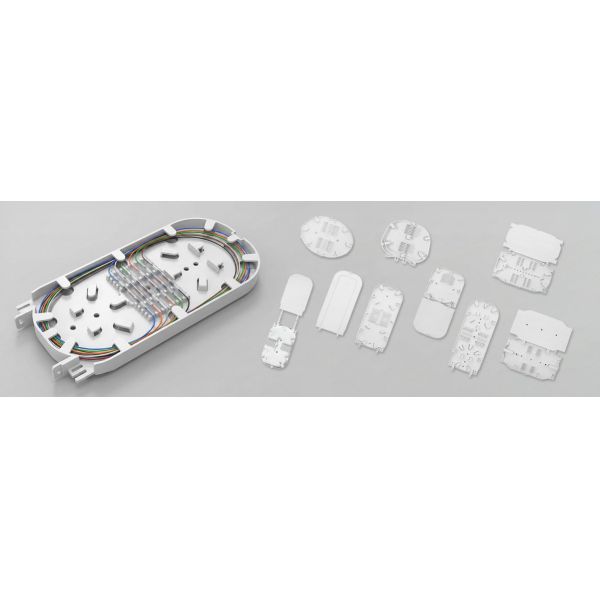

Stackable Hinged Options Fiber Optic Splice Tray
