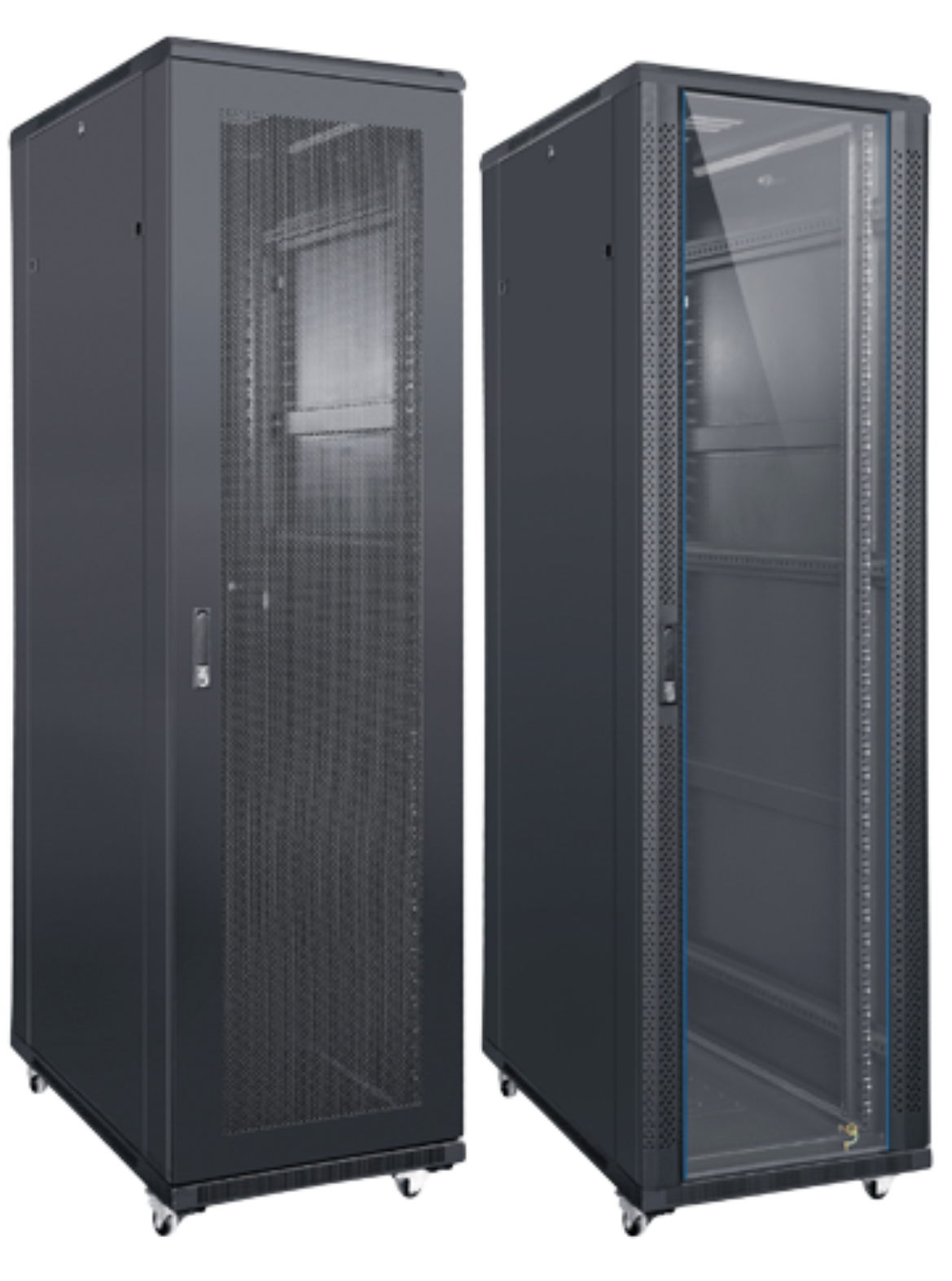

Server Rack Cabinet with 800KG Static Loading Capacity 65% Ventilation Rate and SPCC Cold Rolled Steel for Data Centers

Name: Server Rack Cabinet with 800KG Static Loading Capacity 65 Ventilation Rate and SPCC Cold Rolled Steel for Data Centers
Brand: Zion communication OR OEM
Price: 1 USD

Brand Name : Zion communication OR OEM

Model Number : Data Center Equipment

Certification : ISO, CE, RoHS, UL

Place of Origin : CHINA

MOQ : 1,000 PCS

Payment Terms : T/T,L/C

Supply Ability : 30,000 PCS / Month

Delivery Time : Normally 10 workingdays

Packaging Details : 1 PC/Plastic Bag, PCS/Carton

Model : Server Rack Cabinet

Bnad : Zion Communication

Cord : ZCIDC-06

Capacity : 18U,22U,27U,32U,37U, 42U,47U

Depth : 800mm, 900mm and 1000mm

Contact Now

More detail please visit:

https://www.zion-communication.com/Copper-System-Equipment.html

ZCIDC-06 Server Cabinet

Technical Data
Materials:
· SPCC high quality cold rolled steel
· Surface process: degreasing; phosphating; spray paint
· Thickness: Mounting proﬁle 2.0mm; Others 1.2-1.5mm
Colour:
· RAL9004 (black); others could be required
Standard
·Compliant with ANSI/EIA; RS-210-D; IEC297-2; DIN41491;PART1; DIN41494;PAR7; GB/T2047.2-92; ETSI


Features
· Strong structure with static loading capacity: 800KG
· Adjustable support with load-bearing well caster ensuresthat the cabinet can be moved and fixed easily.
· High-density arc mesh front door and flat mesh back door have a ventilation rate of 65%, benefit for heat dissipation problem of other parts of the cabinet.
· Excellent and elegant exterior door hinge With 180 degrees, which makes the door can be opened 180 degrees in parallel when it's connected, easy to assemble and operate.
· Cables enter from the top or the bottom, all of the tray for front, rear and side panel could be taken out.
· Full range of optional accessories with trustworthy quality.
· Height: 18U,22U,27U,32U,37U, 42U,47U
· Depth: 800mm, 900mm and 1000mm.
· Flexible packaging ensures cabinet’s storage and delivery.
Mian Install the Fitting

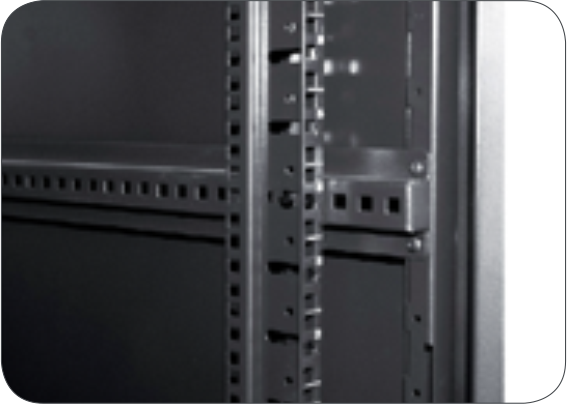

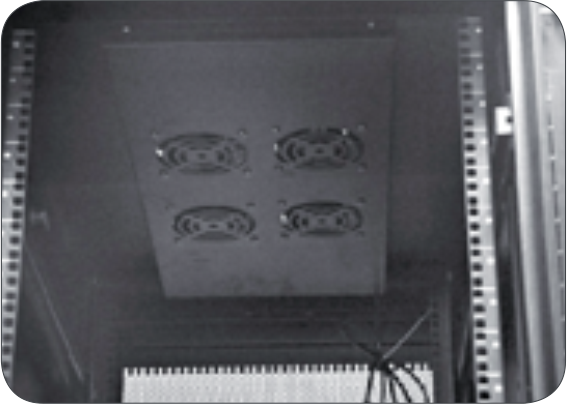

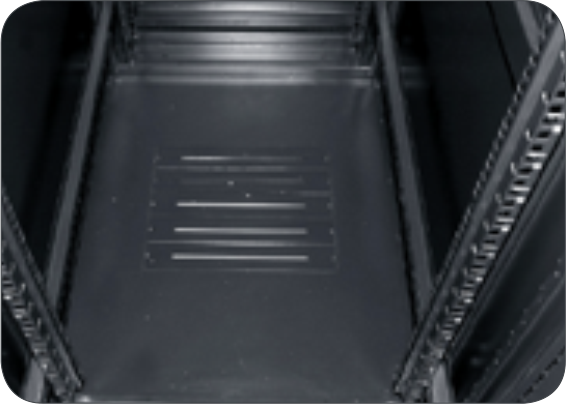

Top cover		Mounting profile		Bottom panel

Main Part

NO.	ITEM	QTY	SPCCT (mm)
1	Frame	2PCS	2.0
2	Mounting angle	6PCS	1.5
3	Mounting profile	4PCS	2.0
4	Top cover	1PCS	1.2
5	Fan tray	1PCS	1.2
6	Fan tray cover	1PCS	1.2
7	Cable entrance cover	4PCS	1.2
8	Supporting tray	4PCS	2.0
9	Hinge	6PCS	/
10	Caster	4PCS	/
11	Side panel	4SET	1.2
12	Glass door	1PCS	1.2
13	T-type glass door	1PCS Optional	1.2
14	T-type mess door	1PCS Optional
15	Curved mesh door	1PCS Optional
16	Glass mesh door	1PCS Optional
17	Steel door	1PCS Optional
18	Folio mesh door	1PCS Optional
19	Flat mesh door	1PCS Optional

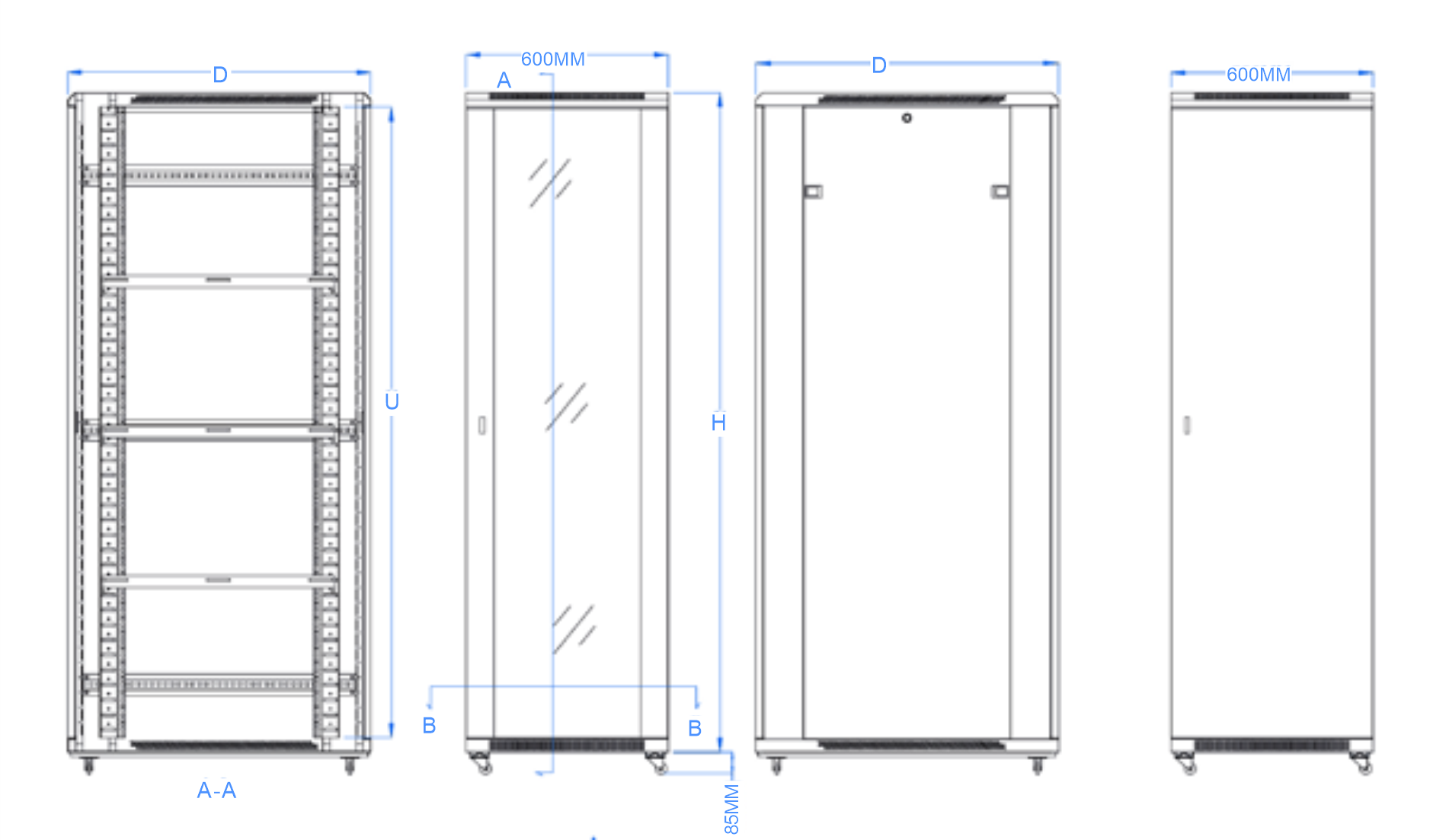

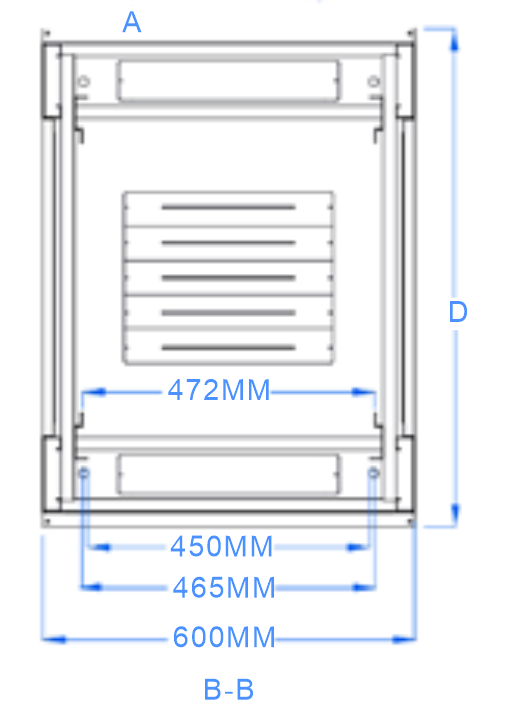

Ordering Information
Model	Width (mm)	Depth(D) (mm)		Height (mm)	U
ZCIDC.6818-6 SHSC	600	800		900	18U
ZCIDC.6918-6 SHSC		900
ZCIDC.6018-6 SHSC		1000
ZCIDC.6822-6 SHSC	600	800		1080	22
ZCIDC.6922-6 SHSC		900
ZCIDC.6022-6 SHSC		1000
ZCIDC.6827-6 SHSC	600	800		1300	27
ZCIDC.6927-6 SHSC		900
ZCIDC.6027-6 SHSC		1000
ZCIDC.6832-6 SHSC	600	800		1525	32
ZCIDC.6932-6 SHSC		900
ZCIDC.6032-6 SHSC		1000
ZCIDC.6837-6 SHSC	600	800		1745	37
ZCIDC.6937-6 SHSC		900
ZCIDC.6037-6 SHSC		1000
ZCIDC.6842-6 SHSC	600	800		1965	42
ZCIDC.6942-6 SHSC		900
ZCIDC.6042-6 SHSC		1000
ZCIDC.6847-6 SHSC	600	800		2190	47
ZCIDC.6947-6 SHSC		900
ZCIDC.6047-6 SHSC		1000
Remark: Information in the sheet refers to the height of cabinet without castor
