F/FTP CAT 6A 500Mhz 10Gbps Cat6a Ethernet Cable LSZH Jacket NO 7112336

Name: FFTP CAT 6A 500Mhz 10Gbps Cat6a Ethernet Cable LSZH Jacket NO 7112336
Brand: HELLOSIGNAL OR OEM
Price: 1 USD

Quality F/FTP CAT 6A 500Mhz 10Gbps Cat6a Ethernet Cable LSZH Jacket NO 7112336 for sale

Brand Name : HELLOSIGNAL OR OEM

Model Number : NO. 7112336

Certification : UL, ETL, CE,CPR, RoHS

Place of Origin : Hangzhou, China

MOQ : 305M/Spool, 100 spools

Payment Terms : T/T, L/C

Supply Ability : 10000 spools/month, 3050KM/Month

Delivery Time : Normally 25 working days

Packaging Details : wooden spool, carton, pallet

Number of conductors : 4 pairs

Type : F/FTP cat6a

Jacket : LSZH

Color : Blue/Grey/......

Conductor : Bare Copper

Application : Telecommunication,Networking,Telecom/CATV,broadband connection,Telecommunication/CCTV/Computer

Insulation : Foam PE

Standard 1 : ISO/IEC 11801-1 Ed.1.0

Standard 2 : ANSI/TIA-568-C.2 ANSI/TIA-568.2-D

Standard 3 : UL444、UL1581、UL1666、IEC60332-1、EN50399

Support : 10Gbase-t、1000BASE-T

Shield : F/FTP, Shielded

Contact Now

F/FTP CAT 6A LSZH-Global Market (NO. 7112336)

Construction

Conductor:			0.57±0.005mm Solid Bare Copper
Pairs:			4 Pairs
Insulation:			1.33±0.05 mm Foam PE
Insulation Colors:			Blue-White/Blue, Orange-White/Orange
			Green-White/Green, Brown-White/Brown
Shielded			AL/PET Foil,100% Coverage
			Cover every pair
Overall Shield			Aluminum Foil
Drain Wire			0.40±0.005mm TC
RipCord:			Cotton or Fibre
Out Jacket:			7.5±0.5 mm LSZH

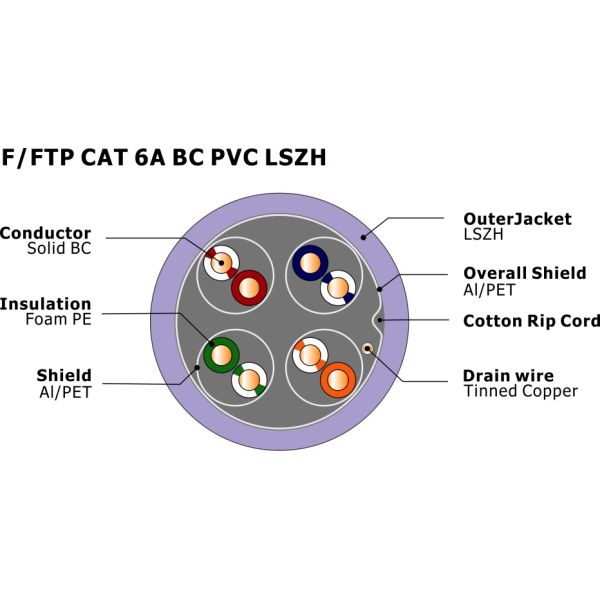

Cross Section

F/FTP CAT 6A 500Mhz 10Gbps Cat6a Ethernet Cable LSZH Jacket NO 7112336

Application Support

10GBASE-T , 1000BASE-T , 100BASE-T , 10BASE-T
1Volp,ISDN, Token, 100MTPPDM, Analogand Datavideo, POE Type1,2,3,4

Electrical Characteristics

DC Resistance			＜9.38 Ohms/100m @20℃
DC Resistance unbalance			4% @ 20℃
Mutual Capacitance			5.6 nF/100m
Characteristic Impedance			1 - 100 MHz: 100±15 Ohms
			100 - 200 MHz: 100±22 Ohms
			200 - 500 MHz: 100±32 Ohms
Max Frequency			500MHz
Capacitance Unbalance			330 pF/100m
NVP			67%
Delay Skew			≤ 45ns/100m

Performance Characteristics

Frequency	RL (Min.)	Insertion Loss(Max.)	Propagation Delay (Max.)	Delay Skew(Max.)	NEXT (Min.)	PS NEXT (Min.)	ELNEXT (Min.)	PSELNEXT (Min.)
MHz	dB	dB/100m	ns/100m	ns/100m	dB	dB	dB/100m	dB/100m
1	20.0	2.1	570.0	45.0	74.3	72.3	67.8	64.8
4	23.0	3.8	552.0	45.0	65.3	63.3	55.8	52.8
10	25.0	6.0	545.4	45.0	59.3	57.3	47.8	44.7
16	25.0	7.6	543.0	45.0	56.2	54.2	43.7	40.7
20	25.0	8.5	542.1	45.0	54.8	52.8	41.8	38.8
31.25	23.6	10.7	540.4	45.0	51.9	49.9	37.9	34.9
62.5	21.5	15.4	538.6	45.0	47.4	45.4	31.9	28.9
100	20.1	19.8	537.6	45.0	44.3	42.3	27.8	24.8
200	18.0	29.0	536.1	45.0	39.8	37.8	21.8	18.8
300	17.3	36.4	536.1	45.0	37.1	35.1	18.3	15.3
400	17.3	43.0	535.8	45.0	35.3	33.3	15.8	12.8
500	17.3	45.3	535.6	45.0	33.8	31.8	13.8	10.8

※Note: The above transmission performance tor the 100M, 20±2℃ under the conditions tested.

Order Information

Marking			HELLOSIGNAL NO.7112332 F/FTP CAT6A 4PR 23AWG PVC ...305M(1000FT) (or Per customer's request)

Inner Package			305m/Spool,305m/Reel (or Per customer's request)
Outer Package			Color Box, Pallet (or Per customer's request)
Delivery time			Normally 25 days after received the deposit.
Brand			HELLOSIGNAL® OR OEM

More information on CAT 6A cable

CAT6A cable which is named Category 6a cable, used for the cabling infrastructure of Internet and Ethernet.
Cat 6A performance is defined for frequencies up to 500 MHz—twice that of Cat 6.
Cat 6A also has an improved alien crosstalk specification as compared to Cat 6, which picks up high levels of alien noise at high frequencies. For more about its key features and applications,
please check our complete guide to Cat 6A cable.

Construction and packaging

23 AWG Solid Copper
U/UTP: the cable consists of 4 unshielded twisted pairs and no outer shielding
U/FTP: the cable consists of 4 pairs individually shielded
F/FTP: the cable consists of 4 pairs individually shielded and with an outer foil shield too
Bulk cable mainly packed in 100M, 305M,300M,500M
PVC, PE, LSZH, CM,CMR, CMP avaible chose for Jacket

Applications

Cat6A can support 10 Gbps, the cabling can support frequencies of up to 500 MHz
10GBASE-T/POE+/HDBASE T
Computers and Laptops/Televisions/Wifi access points/Network enabled appliances/Telephones
Reference Standard and Certificates
ISO/IEC 11801-1 Ed.1.0 | ANSI/TIA-568-C.2 | ANSI/TIA-568.2-D | IEC60332-1 | EN50399
UL/ETL/CPR/CE/DELTA/RoHS/REACH/ISO9001/ANATEL/SABS

Connectors

RJ-45 is the standard connector used with a Cat6a cable assembly.
RJ45 is the universal connector used with 99% of network devices.

Production Supplier Profile

Zion Communication is one of the top manufacturers and exporters of F/FTP CAT6A LSZH JACKET.
Extensive experience in manufacturing for export and problem-solving.
Zion Communication focuses on customer needs: provide competitive signal & Low voltage power transmission products and services, continue to create maximum value for customers!
Zion Communication has advanced production equipment and excellent engineers and skilled workers to guarantee the best products to our customers.
Our management and international sales teams are committed to our customers' utmost satisfaction.
