Name: CT167 CPE LSZH 75 Ohm CATV coaxial Cable
Brand: Zion communication OR OEM
Price: 1 USD

Brand Name : Zion communication OR OEM

Model Number : CT Cable

Certification : UL, ETL, CE, RoHS

Place of Origin : China

MOQ : 30 KM

Payment Terms : T/T, L/C

Supply Ability : 1000KM / Month

Delivery Time : Normally 15 working days

Packaging Details : 500M, 1000M, Wooden Drum, Pallet

Inner Conductor : 0.065"/1.67mm/14AWG BC

Dielectric : 7.28mm 5 cell air spaced PE

Shield 1 : overlapped copper foil

Shield 2 : 16*6*0.12mm bare copper braid wire 55% coverage

Jacket : 10.1±0.20mm LSZH

Jacket Thickness : 0.030"/0.76mm

Contact Now

CT167 CPE LSZH 75 Ohm CATV coaxial Cable NO.7100448



Construction Parameters:
Inner Conductor	0.065"/1.67mm/14AWG BC
Dielectric	7.28mm 5 cell air spaced PE
Shield 1	overlapped copper foil
Shield 2	1660.12mm bare copper braid wire 55% coverage
Jacket	10.1±0.20mm LSZH
Jacket Thickness	0.030"/0.76mm
Application	For Use in Longer CATV Run Lengths
Electrical Characteristics:
Inner Conductor Resistance	The Max. at 20℃ shall be < 7.86 Ω/km

Capacitance	52 ±3 pF/m 15.9 ±0.9 pF/ft
Impedance	75 ± 3 Ω
Return loss	between 5 and 1000MHz: > 22dB
Velocity of Propagation	0.85
Sparker Test (VAC)	4

Mechanical and Envrionmental Properties
Cable bend radius	10 times the cable diameter
Operating Temp Range	-20 ℃ to 60℃
Cable diamensions	7.8±0.20mm LSZH

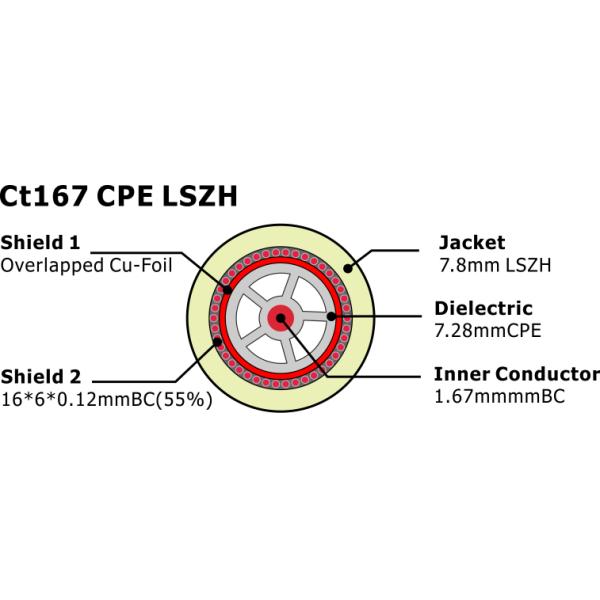

Cross Section














Attenuation(20℃):
Frequency (MHZ)	Max Attenuation(dB/100ft)	Max Attenuation (dB/100m)
5		0.80
10		1.20
50		3.20
100		5.40
200		6.50
300		8.50
470		11.00
600		13.50
1000		16.40

Order Informations:
Marking	HELLOSIGNAL CT167 CPE LSZH CATV COAXIAL CABLE 7100448 ×××M/FT
Package	Inquired Length on Reel,wooden Spool,pallet …
Delivery time	Normally 25 days after received the deposit.
Brand	HELLOSIGNAL^® OR OEM
